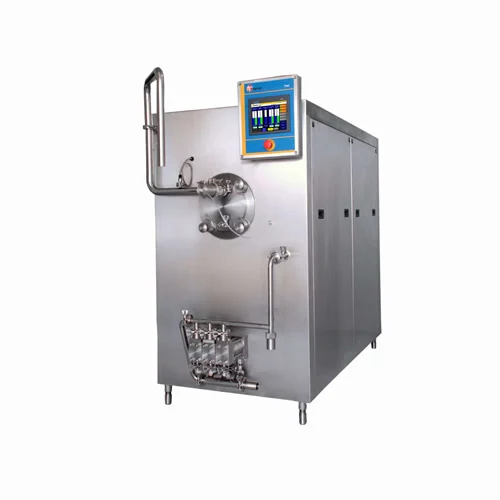

Continuous ice cream freezer
Cooling and Heating Specialists
Continuous ice cream freezer
● Extra rich hygienic construction & easy to clean.
● All product contact parts made of SS 304/316.
● Water jacket construction for even heating.
● Low power consumption due to proper glass wool insulation in the tank.
● Available in steam, heater and LPG geyser.
● High capacity faster heating electrical heaters.
● Digital temperature controller.
● Occupies minimum space.
● Easy to operate panel design.
● Standard make gearbox & motor for agitator.
● Special design agitator for perfect mixing.
● Elegant look, robust & sturdy design.
| Model | CF-100 | CF-200 | CF-400 |
|---|---|---|---|
| Capacity, L/Hr. | 100 | 200 | 400 |
| Dasher Motor, KW | 0.75 | 1.5 | 3.75 |
| Mix Pump, KW | 0.18 | 0.75 | 1.1 |
| Compressor, KW | 1.5 | 2.6 | 2 x 2.6 |
| Compressor Type | Hermetic | Hermetic | Hermetic |
| Refrigerant | R-404A | R-404A | R-404A |
| Water Flow Rate at 30°C L/Hr. | 1200 | 2000 | 4500 |
| Length, MM | 775 | 1030 | 1350 |
| Width, MM | 665 | 665 | 900 |
| Height, MM | 1000 | 1250 | 1350 |
